UTS Tube System and Accessories

Description

see also our other Studio Accessories

Order Code Description
UTS60/60 UTS tube ø48mm / length 6m
UTS60/30 UTS tube ø48mm / length 3m
UTS60/20 UTS tube ø48mm / length 2m
UTS10H UTS tube holder set on C track
UTS11 UTS tube holder set on pipes ø48mm
UTS12 UTS tube holder set on concrete ceiling with level adjusting possibility
UTS13 UTS tube holder set on IPE120
UTS20 UTS connector set
UTS30 UTS end stopper set (2 end stoppers)

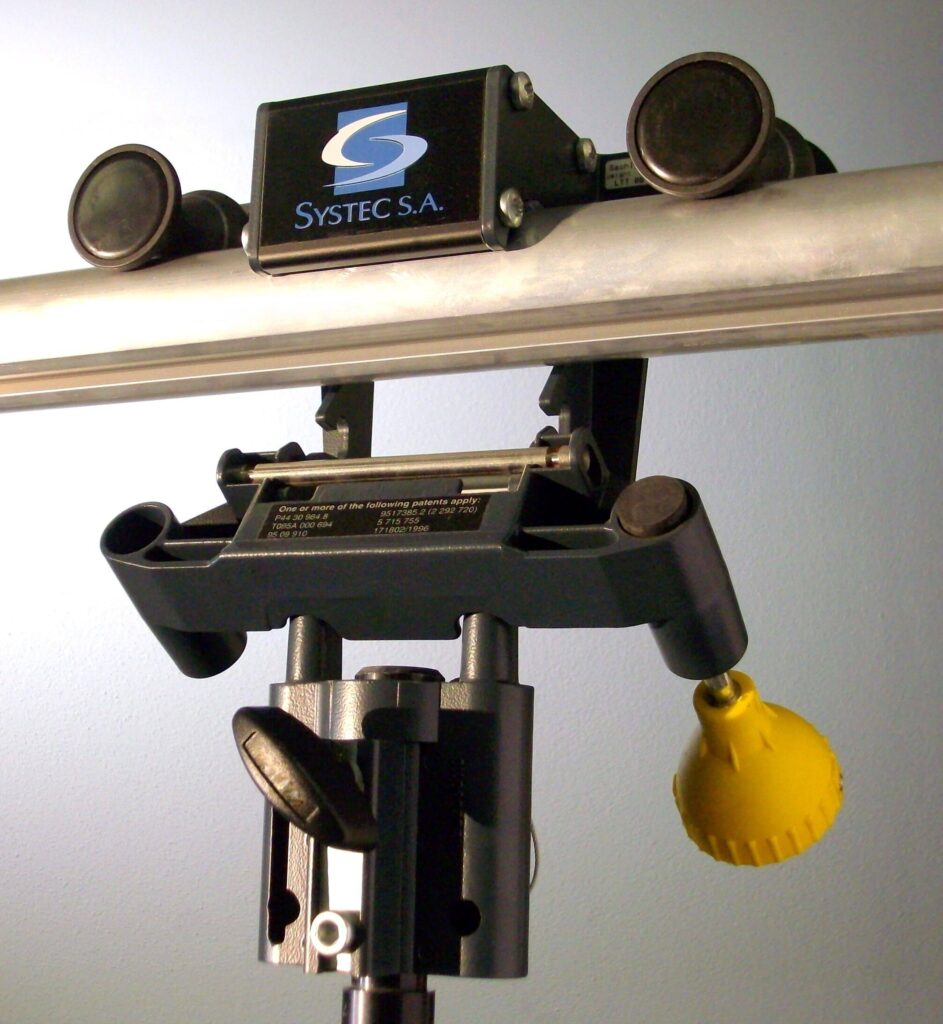

LTT504 Tube Trolley LTT504 for flexible positioning of luminaires or pantographs on standard or UTS tubes, from ø35 to 52mm, with 28mm socket and spigot and 28mm socket
LTT505HT Tube Trolley LTT505 for flexible positioning of luminaires or pantographs on standard or UTS tubes, from ø35 to 52mm, with 16mm socket and spigot and 28mm socket
UTS620 UTS Crossbarrel 2m rigid version for setting keylights between 2 UTS tubes, including 1 UTS30 end stopper set and 2 clamps with 28 mm socket
UTS720 UTS Crossbarrel 2m, pivotable version for setting keylights between 2 UTS tubes, including UTS30 end stopper set and 2 flexible attachments
Order Code Description
A2210-30 Safety Rope 30 kg Diameter 4mm, length 100cm, according DIN 56927 Safe working load 30kg (looped), 10kg (choked)
A2210-50 Safety Rope 45 kg Diameter 5mm, length 100cm, according DIN 56927 Safe working load 45kg (looped), 20kg (choked)
A2210-60 Safety Rope 60 kg Diameter 6mm, length 100cm, according DIN 56927 Safe working load 60kg (looped), 30kg (choked)
M-C100 C-clamp for tubes Ø20-55mm with 28mm socket
M-C150 C-clamp rotatable for tubes Ø28-78mm with 16mm socket and spigot and 28mm socket
