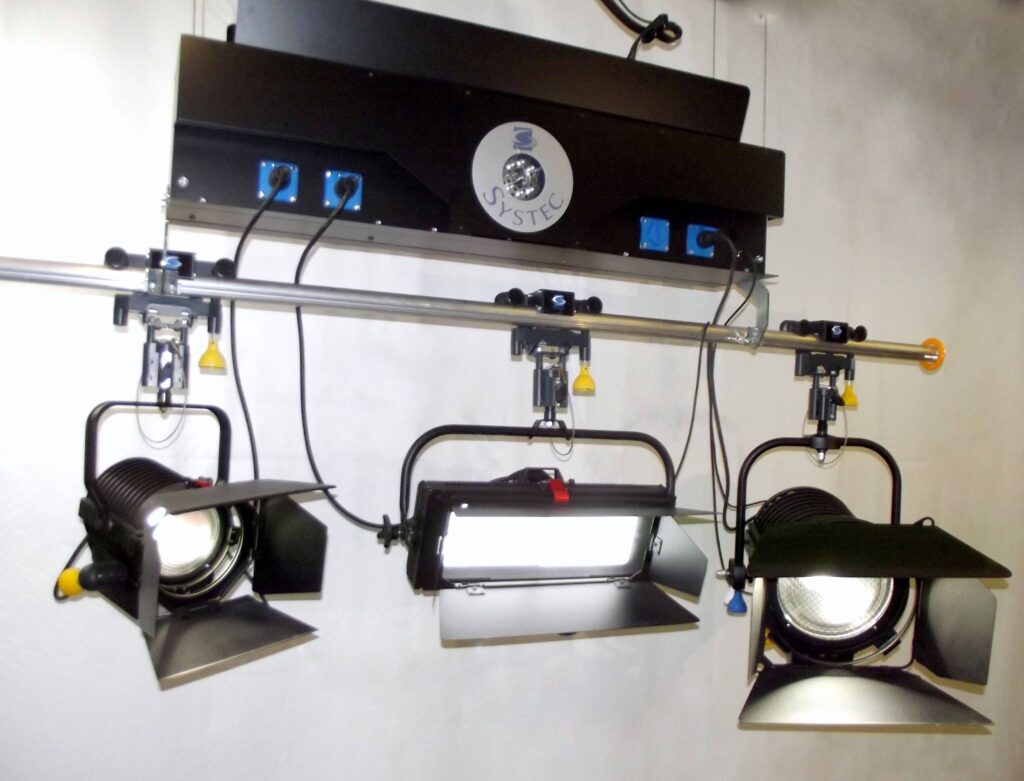

The Teleclimber STC14 is a self-climbing hoist, optimized concerning payload and self weight. The electrical circuits are designed for the use of modern LED luminaires, controlled by DMX or Ethernet optional. Luminaires are attached onto a 48mm load barrel with 2,5m length by using C-clamps or tube trolleys.
STC 14 Teleclimber
Description
Technical Specifications
| Safe Working Load (SWL) | 90 / 85 / 80 kg |
|---|---|
| Lifting Cables | Ø3 mm steel |
| Load Attachment | UTS load barrel 48 mm |
| Power Supply | 400 V / 50 Hz – 3 phase |
| Ambient Temperature | 0 – 40 °C |
| Standards | DIN 15560-46, BGV C1 |
| Certifications | CE compliant |
Versions
| Order Code | Min. Length | Max. Length | Self-weight | SWL | Avg. Speed | Studio Height |
|---|---|---|---|---|---|---|
| STC1460DMX | 0.9 m | 6.0 m | 65 kg | 90 kg | 7.5 m/min | 7.5 m |
| STC1480DMX | 1.0 m | 8.0 m | 70 kg | 85 kg | 8.4 m/min | 9.5 m |
| STC1410DMX | 1.1 m | 10.0 m | 75 kg | 80 kg | 9.2 m/min | 11.5 m |
Components & Accessories
| Code | Description |
|---|---|
| STC14-B30 | Load barrel 3.0 m for STC14, safe working load for this option 30 kg/m |
| STC-POS | Vertical positioning system for STC |
| STC14-S16A | 230V–16A non-dim circuit for STC with Schuko socket and cabling 3 × 2.5 mm² |
| STC14-C32A | 32A dimmer circuit for STC with CEE17 socket and cabling 3 × 4.0 mm² |
| STC14-ETH | Ethernet circuit with RJ45 socket and CAT6 cabling |
| LTT504 | Tube Trolley for UTS tubes or pipes Ø38–52 mm |
